m72 law tube

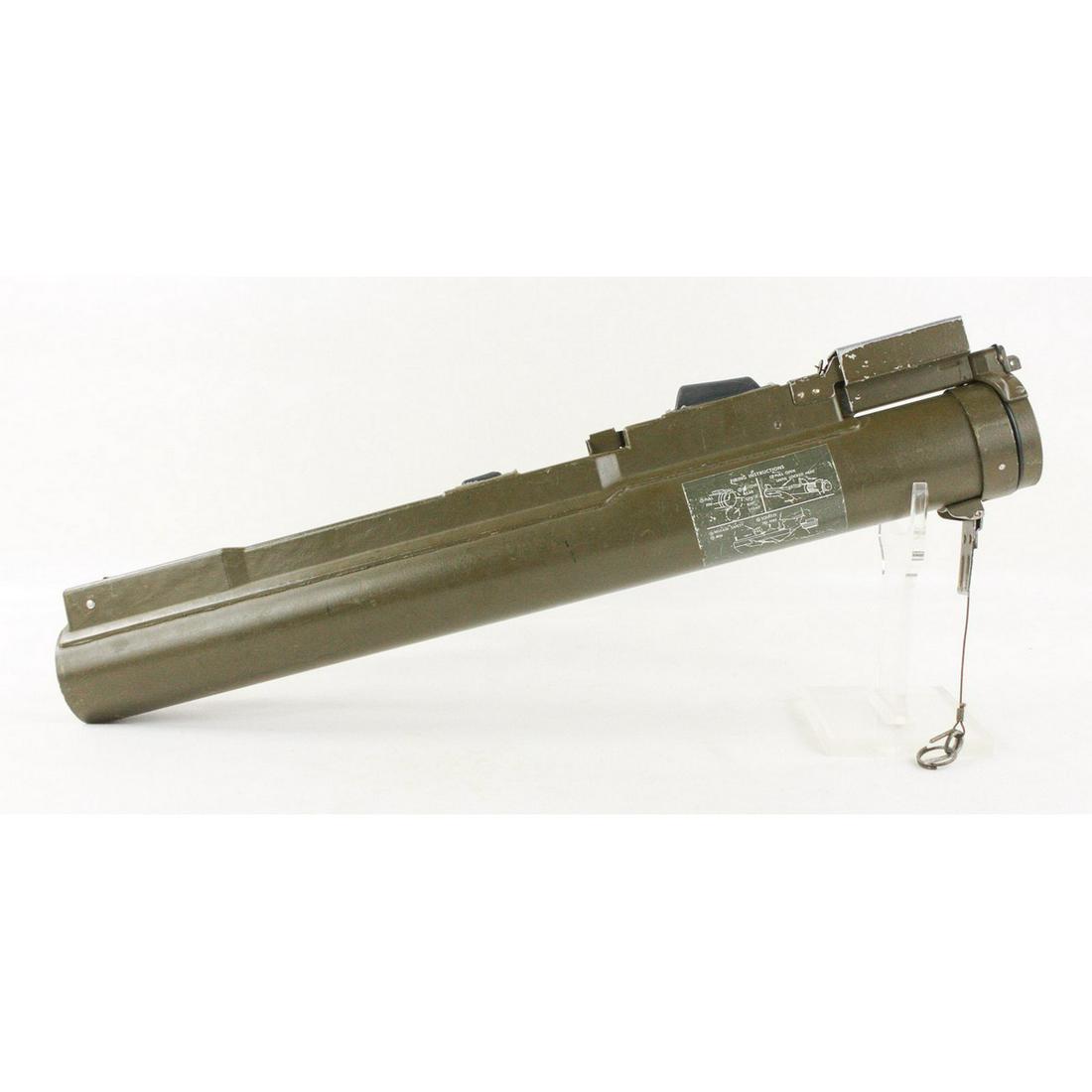

M72 Law Tube - Original article: Only one available. This is an inert non-firing BATF compatible M72 LAW light anti-tank weapon offered in excellent condition. These pipes cannot be reloaded once fired.

This is an early short-lived M72 (not A1) "Red Label" variant of the LAW. Due to the inaccuracy and danger of these early versions of the M72, they were quickly replaced by improved versions, the missile was even reported to explode before exiting the tube or before reaching the intended target, injuring the operator.

M72 Law Tube

During Vietnam and the post-Vietnam period, all LAWS issued were rescinded after incidents of a warhead detonating in flight, sometimes injuring the operator. After the safety improvements, part of the training and firing exercises included a requirement to ensure that the text description on the launcher included the words "clutched" indicating that the launcher required safety modification(s).

Marines: Upgraded M72 Law Rocket Launcher Is A 'game Changer'

They are a timeless design that the US military has tried to replace before, but couldn't find anything better than these disposable missiles. The FGR-17 Viper was intended to replace the LAW, but production was discontinued due to cost, safety and capability issues.

This very nice example has the rear sight intact, often broken or missing, but unfortunately the front sight is broken and completely missing. To complete the ensemble, there is a file and a harness, which are also often missing. This example still has the original color stamping/decal:

These types are extremely rare and would be very difficult to upgrade. It comes in a canvas bag, although we don't know if that's something it was originally released with.

The weapon (LAW and LAWS Light Anti-Armor Weapons System) is a portable single-shot 66 mm unguided anti-tank weapon. It has been used continuously in various versions since the 1960s. This example probably dates from the late 1970s. It's in good condition, still stretches and burns even dry. The paint is still very good, although areas have been painted over and the manual label is also intact. The safety handle/valve lever is still there and works and the cap has a retaining pin.

M72 Law Taginn Airsoft Launcher ($70 Diy Build)

The solid rocket propellant was developed at the newly formed Rohm and Haas Research Laboratory at Redstone Arsenal in 1959, then the entire system was designed by Paul V. Choate, Charles B. Weeks, Frank A. Spinale, and others. Norris in the Hesse-East division of Thermadore. In America, Hesse-Eastern began production of the weapon in 1963 and ended in 1983; it is currently produced by Nammo Raufoss AS in Norway and their subsidiary Nammo Talley, Inc. in Arizona.

In early 1963, the US adopted the M72 ACT. The Army and US Marine Corps are their primary individual anti-tank weapon for infantry, replacing the M31 HEAT grenade rifle and the M20A1 "Super Bazooka" in the US Army. It was later adopted by the US Air Force to serve in emplacement/armor defense missions for air base defense.

In the early 1980s, the M72 was to be replaced by the FGR-17 Viper. However, Congress canceled this program and the M136 AT4 was adopted instead. Its closest counterparts were the Swedish Pskott m/68 (Miniman) and the French SARPAC.

The increasing importance of tanks and other armored vehicles during World War II created the need for portable infantry weapons to cope with them. Molotov cocktails, flamethrowers, cluster charges, jury-rigged landmines, and specially designed magnetic hollow charges were the first to be used (with limited success). All of them had to be used within a few meters of the target, which was difficult and dangerous.

Sold Price: M72 Law Launcher Tube

The US Army introduced the bazooka, the first rocket-propelled grenade launcher. Despite early problems, it became a success and was copied by other countries.

However, the basooka had its drawbacks. Large and easily damaged, a well-trained two-man crew was required. Germany developed a one-man alternative, the Panzerfaust, with single-shot missiles that were cheap and did not require special training. Therefore, they were regularly issued to Volkssturm home defense regiments. They were very effective against tanks in the last days of World War II. However, the Panzerfaust was not a rocket launcher, but instead a recoilless rifle.

The M72 LAW is a combination of two weapons from WWII. The basic principle is a miniature bazooka, while its light weight and cheapness rival the Panzerfaust.

The weapon consists of a missile in a launcher consisting of two tubes, one inside the other. When closed, the outer assembly acts as a watertight container for the missile and as the firing mechanism for the firing cap that activates the missile. The outer barrel contains the trigger, safety grip, front and rear sights, and rear stock. The inner tube contains a channel assembly that houses the firing pin assembly, including the locking lever. When extended, the inner tube moves outward and rearward, guided by a channel assembly that runs in the alignment groove of the outer tube trigger housing assembly. This causes the locking lever to move under the trigger in the outer barrel, locking the inner barrel in the extended position and cocking the weapon. Once armed, the weapon is no longer waterproof, even if the launcher is collapsed to its original configuration.

M72 Law Tube (its Not Loaded)

When fired, the impact in the rear tube hits the primer, which ignites a small amount of powder that "flashes" down the tube to the rear of the rocket, igniting the propellant in the rocket motor. The rocket motor burns completely before exiting the mouth of the launch pad, producing gases at about 760 °C (1,400 °F). The rocket propels the 66 mm warhead forward without significant recoil. When the warhead leaves the launch pad, six fins extend from the bottom of the rocket tube to stabilize the warhead's flight. The early LAW warhead, developed from the M31 HEAT rifle grenade warhead, uses a simple but extremely safe and reliable piezoelectric ignition system. Upon impact with the target, the forward portion of the nosepiece is shattered, resulting in a microsecond electrical current that detonates the booster charge at the base of the warhead, igniting the main warhead charge. The force of the main charge forces the copper lining into a directed beam of particles capable of enormous penetration relative to the size of the warhead.

A unique mechanical recoil guard located at the base of the detonator grounds the circuit until the rocket has accelerated out of the tube. Acceleration causes the three discs in the safety mechanism to rotate 90° in sequence, releasing the chain; the circuit from the nose to the bottom of the detonator is complete when the piezoelectric crystal breaks on impact.

The M72 LAW was issued as packaged ammunition. Launcher improvements and ammunition differences were distinguished by a single designation. The original M72 warhead penetrated 200 mm/8 inches of armor, but the improved M72A2 model increases this to 300 mm/12 inches.

There is also a training variant of the M72 LAW called the M190. This weapon is reloadable and uses the 35mm M73 launcher. A sub-caliber training unit is also available for the M72 that uses a special tracer cartridge. The training variant used by the Finnish armed forces fires a 7.62 mm tracer bullet.

Post Ww2 Deactivated Machine Guns & Launchers

The US Army tested other 66 mm rockets based on the M54 rocket engine from the M72. The M74 TPA (Thickened Pyrophoric Agent) fuze was filled with TEA (Triethyl Aluminum); it was used in the M202A1 FLASH (FLame Assault Shoulder weapon) 4-tube launcher. The XM96 RCR (Riot Control Rocket) had a CS gas-filled warhead for crowd control and was used in conjunction with the XM191 four-tube rocket.

After firing in combat, the launcher must be destroyed so that the enemy does not use it as a trap; an enemy can collapse a launch pad into its original configuration, fill it with explosives, and detonate it when a soldier moves if it believes it is unused. Because of the weapon's single-use nature, it was issued by the Canadian Army and the US Army as "wooden round" ammunition that requires no inspection or maintenance, just as handgun ammunition can be stored in the same manner for years without issue.
